In Stock Equipment - Used CNCs and Robots

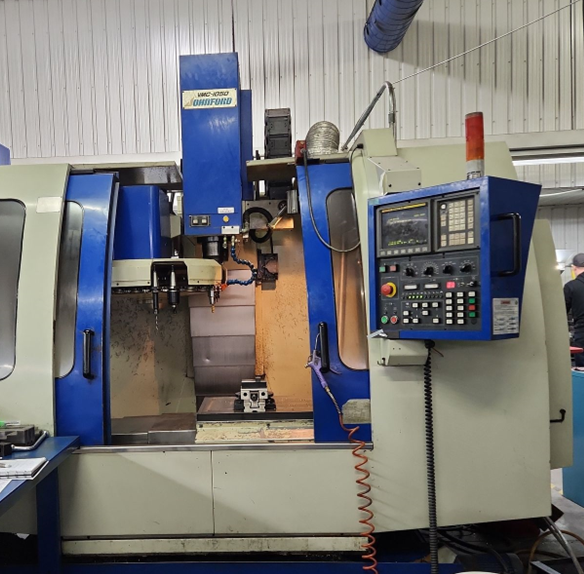

X-axis travel: 41.339″
Y-axis travel: 19.685″
Z-axis travel: 24″
Table size: 47.2″ x 19.7″
Table load capacity: 3,300 lbs
Spindle taper: Cat 40
Spindle speeds ( 2-speed geared): to 8,000 rpm
Spindle motor: 10 hp
Automatic tool changer: 24 side mount
Machine weight: 13,200 lbs
Fanuc 0M control
4th axis CNC control rotary
5th axis manual control tilting rotary
Box ways
Full enclosure
Additional pics and video upon request
  |

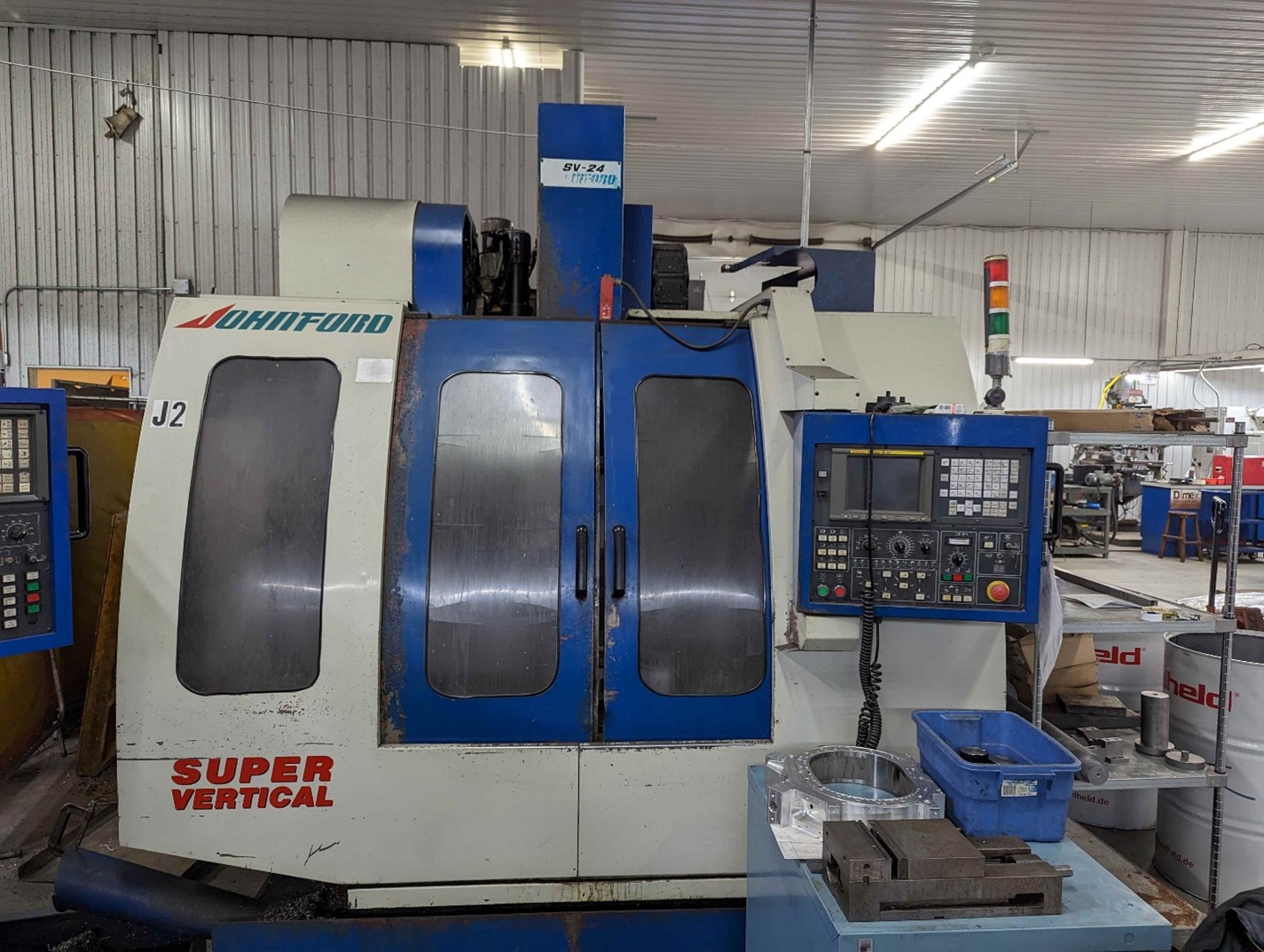

X-axis travel: 23.6″
Y-axis travel: 18″
Z-axis travel: 24″
Table size: 26″ x 20″
Table load capacity: 1,760 lbs
Spindle taper: Cat 40
Spindle speeds ( 2-speed geared): To 8,000 rpm
Spindle motor: 15 hp
Automatic tool changer: 24 side mount
Machine weight: 12,100 lbs
Fanuc 18-M control
Box ways
Full enclosure
Additional pics and video upon request
| |

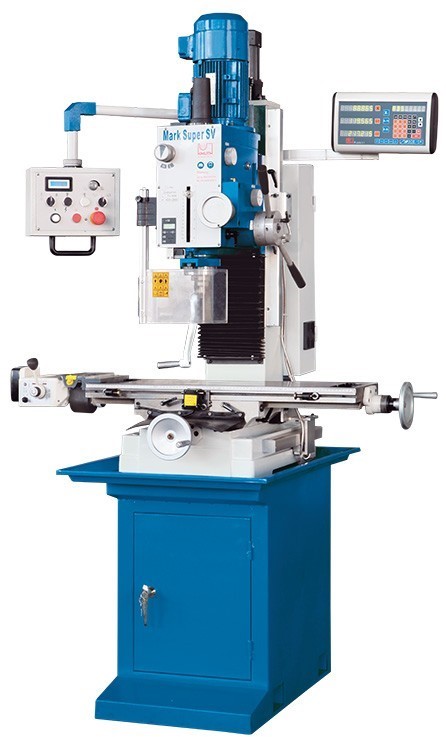

Travel X-axis: 22”
Travel Y-axis: 7”
Table dimensions: 30” x 9”
Drilling capacity: 2”
Guide width: 5”
Shaft milling: 1.26”
Head elevation: 15”
Speed: (2) 75-438 / 438-2500 rpm
T- slots, width: 0.6”
T- slots, spacing: 3.1”
Vertical Milling Head
Spindle Mount R8
Quill stroke 5”
Quill diameter 3”
Spindle nose to table distance 18”
Throat 10”
Head swivel range +- 45deg.
Quill feeds 0.004, 0.007, 0.010
Drive Capacity
Motor rating main drive 2 HP
Measure and weights
Overall Dimensions 49” x 37” x 83”
Weight 1,056 lbs
Increased comfort for this compact, versatile powerhouse.
More power and variable speed control for a wider range of applications.
Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining.
The selected spindle speed is displayed directly on the control panel.
Infinitely variable table feed.
Premium cast-iron machine frame with adjustable dovetail guides on all axes.
Motorized cutter head movement and hand-wheel for exact positioning of head.
Automatic quill feed with 3 gear steps.
Hand-wheel for quill micro-feed.
Digital depth indicator for quill travel.
Tapping unit with adjustable rotation reversal for thread cutting.
Hardened gear racks and shafts for quiet operation and long life.
Rigid base with storage room is included.
Infinitely variable feed on X is included.
| |

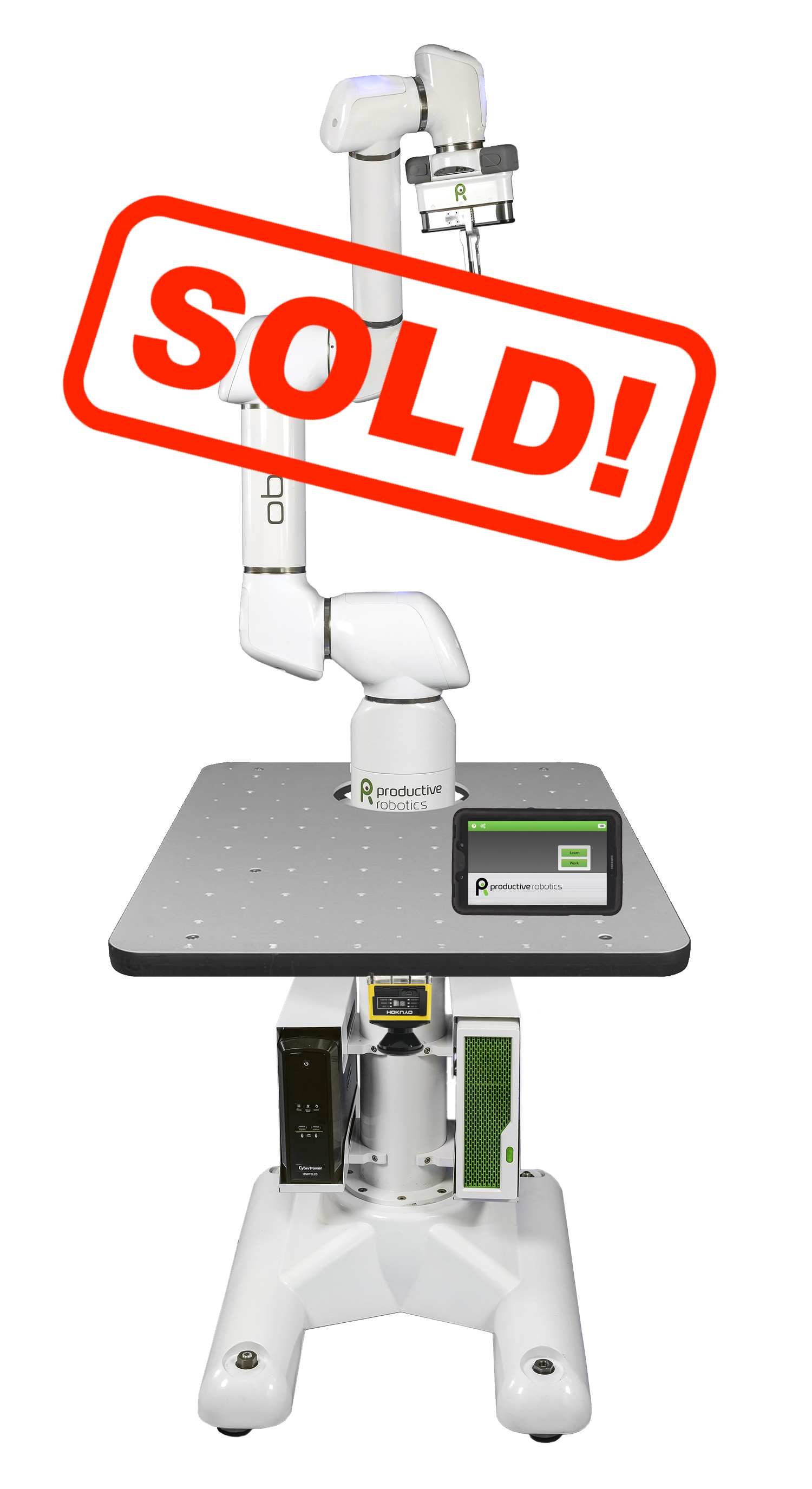

Rolling Robot Stand
4” Pneumatic Soft Jaw Air Vise
CleanTech 160mm Chip Fan with ¾ Shank
Kurt Air Versatile Pneumatic Lock Vise 0-9.25”
| |
Additional features:
Spindle motor is prepped for 500 PSI TSC
Mist Collector is Available by request.
4th Axis Drive and Cables for Koma 4th axis prep

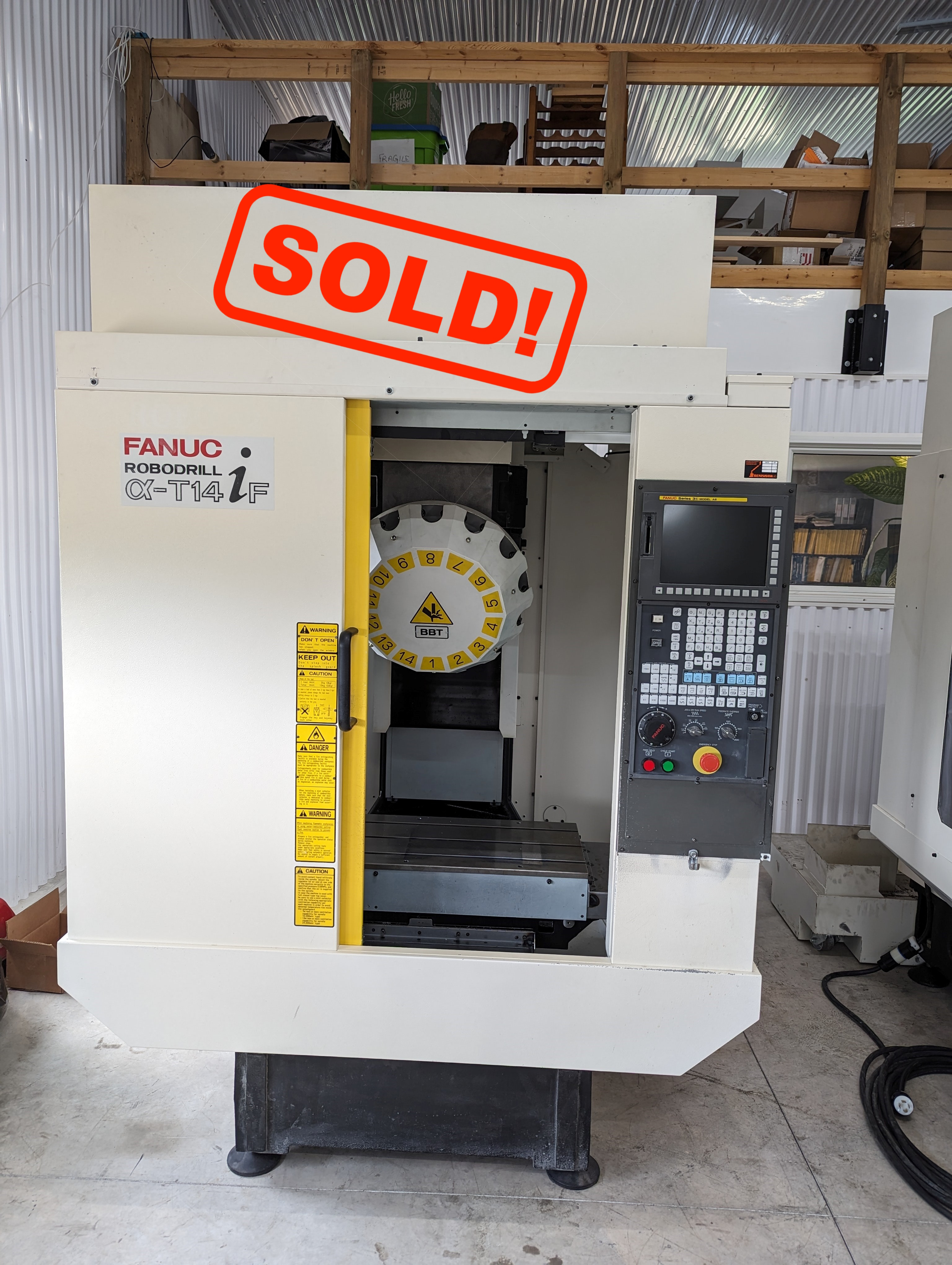

Axis Travel of 19.6" (X Axis), 15.7" (Y Axis), and 12.99" (Z Axis)
25.4” X 12.99” Table Area With A 660 Lbs Load Capacity
200-24,000 RPM Direct Drive High Torque Spindle
100L Coolant Tank
Optional Fully Integrated 4th Axis and 5th Axis
BT-30 Spindle Taper with “Big Plus” Dual Contact Spindle (four bearing design)
21 Position, Bi-Directional Tool Changer (New Design)
“Quick” ATC Recovery System
1.6 Second Tool Change Time (Chip to Chip)
0.9 Second Tool Change Time (Tool to Tool)
5,000,000 Duty Cycle Time
Rigid Tapping up to 5,000 RPM
“Quick” Tap Recovery System
High Speed Reverse Tapping
Thread Milling
Helical and Linear Interpolation
1 Millisecond Servo Response Time
Three Axis Simultaneous expandable to Five Axis Simultaneous
Custom PMC
HRV Positioning
Simultaneous ATC / Table Positioning
2125 IPM Rapid Rate – X, Y, Z Axis
Feed Rates to 1181 IPM X, Y, Z
Multi Step Skip
AI Contour Control I
Nano CNC System
Ultra Precise 16,000,000 Pulses/Rev encoders
1.5 G Acceleration
Thermal Growth Compensation
1,280 Meter Memory (512 Kbyte)
1,000 Registerable Programs
Tool Compensation Memory C
Tool Offset Pairs 200 Pairs
Part Program Storage 504,000 Character 1280 Meters
6 + 48 Work Offsets
Coordinate System Rotation (G68.G69)
Coordinate System Setting (G92)
Custom Macro B
Canned cycles for drilling (G73, G74, G81~G89/G80)
Manual Handle Feed
Coolant System
Coolant & Chip Splash Guard
Skip Function (G31)
Background Editing
Dynamic Graphic Display
On Screen Display of Spindle ‘ RPM’ and ‘Load’ Meters
Basic Metal Top Cover
Leveling Bolts and Pads
Alpha Numeric Keyboard
Automatic Lubrication System
Periodic Maintenance Management
Quick Side (Operator Interface)
Manual Guide for Milling (Shop Floor Programming System)
Spindle motor is prepped for 500 PSI TSC
Mist Collector is Available by request.
4th Axis Drive and Cables for Koma 4th axis prep
